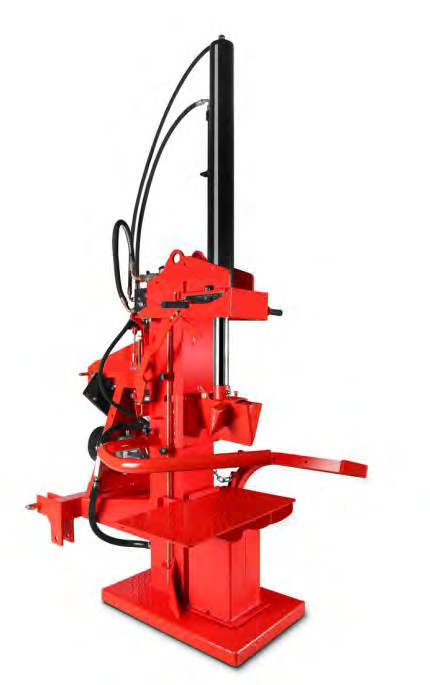

ModelLSM-22T(PTO)LSM-22T(EM)
DrivePTOElectric (4KW)
Drive Power20-60hp
Splitting Force21 T21T
Piston Hub1050 mm1050 mm
Splitting Height640/1140 mm640/1140 mm
Splitting Speed (S2-S1)-R* (s/1000 mm)(5,6-11,1)-5,6 / (3,6-7,2)-3,6(5,6-11,1)-5,6 / (3,6-7,2)-3,6
Max. Shaft Rotations30 (1400) / 73 (540) min-130 (1400) / 73 (540) min-1
Oil Quantity in Tank40 L40 L
Recommended Tractor Power27 kW / 37 HP27 kW / 37 HP
Dimensions WxLxHx(Ht)805x1260x2850x(1850) mm805x1260x2850x(1850) mm
Splitting wedgeOptionalOptional
Splitting Table with ExtensionOptionalOptional
